ImpaqPlus Portable Sound & Vibration Analyzer
 글쓴이 : 최고관리자
조회 : 1,106

impaq plus Portable 4 channel dynamic signal analyzer, sound and vibration analyzer


Born for advanced field testing
Impaq Plus is a fully rugged portable 4 channel real-time analyzer built for advanced noise and vibration measurements in the field.

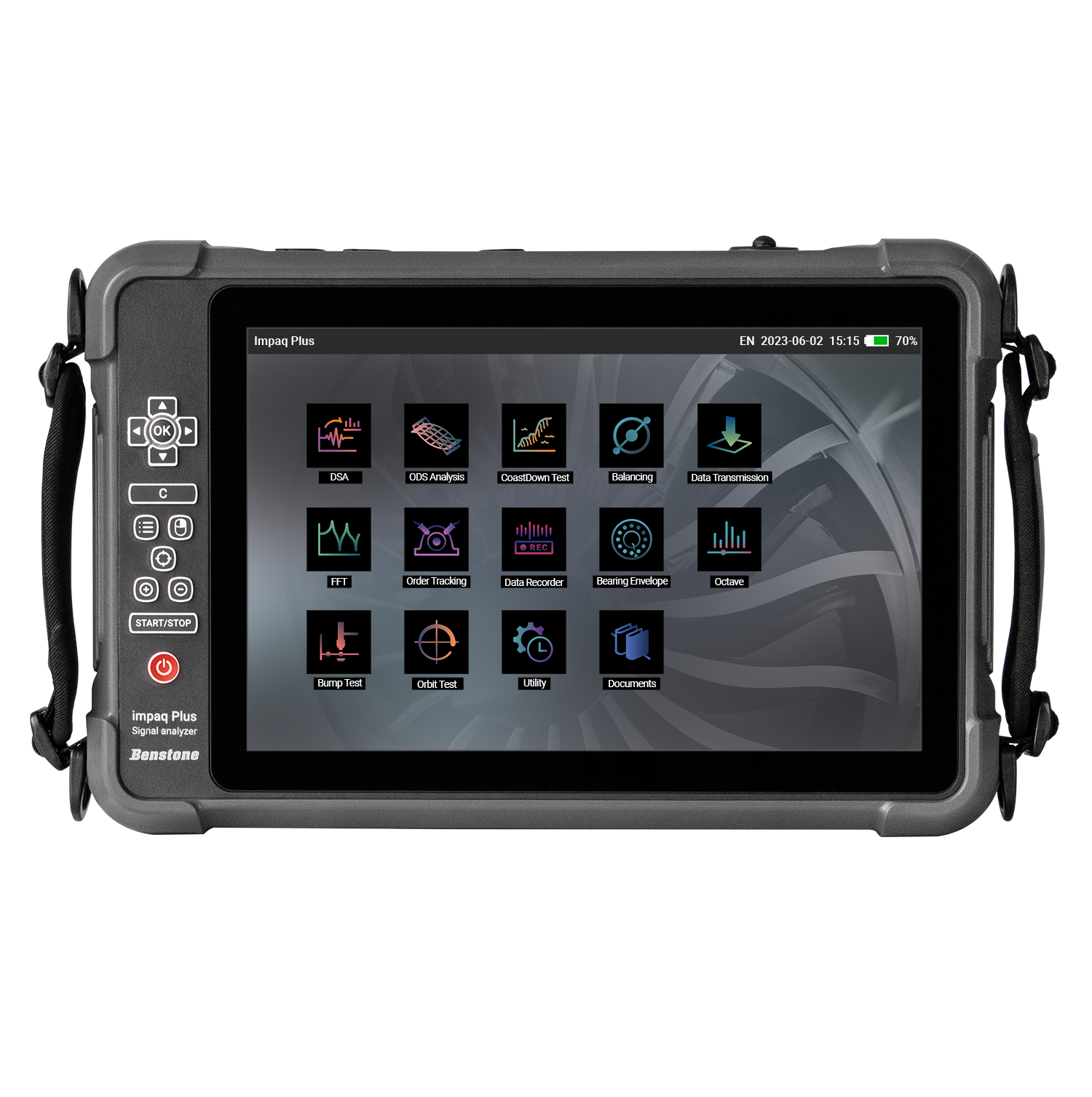

Equipped with a large 10.1” multi-touch color display, information is not only on display, but a more intuitive user interface with keypads on the left side.

Maximum frequency
    40 kHz with 4 channel on

Input channels
    4 analog channels and 1 tacho channel

A/D converters
    24 bit Delta-Sigma

Internal memory
    256G SSD

Interface
    USB 3.1 type A connector x1

LCD display
    1280x800 10.1” multi-
touch color screen

Fully rugged instrument
Manufactured with a rugged enclosure by a dual injection molding process and protective sealing to provide an IP 65 rating for measurement in harsh environments.
Operating temperature
    -10 deg C to + 50 deg C

Product approvals
   CE, RoHs, REACH, China RoHs, FCC, UKCA, KC

Drop test
   1.2 meters - MIL-STD 810H

Vibration test
   MIL STD 810 transportation

Sealing / Ruggedness
   EN60529 IP65

Working with dual or single battery
Continuous 8-10 hours operation with dual batteries, (1.9 kg)
4-5 hours operation with single battery. (1.72 kg)

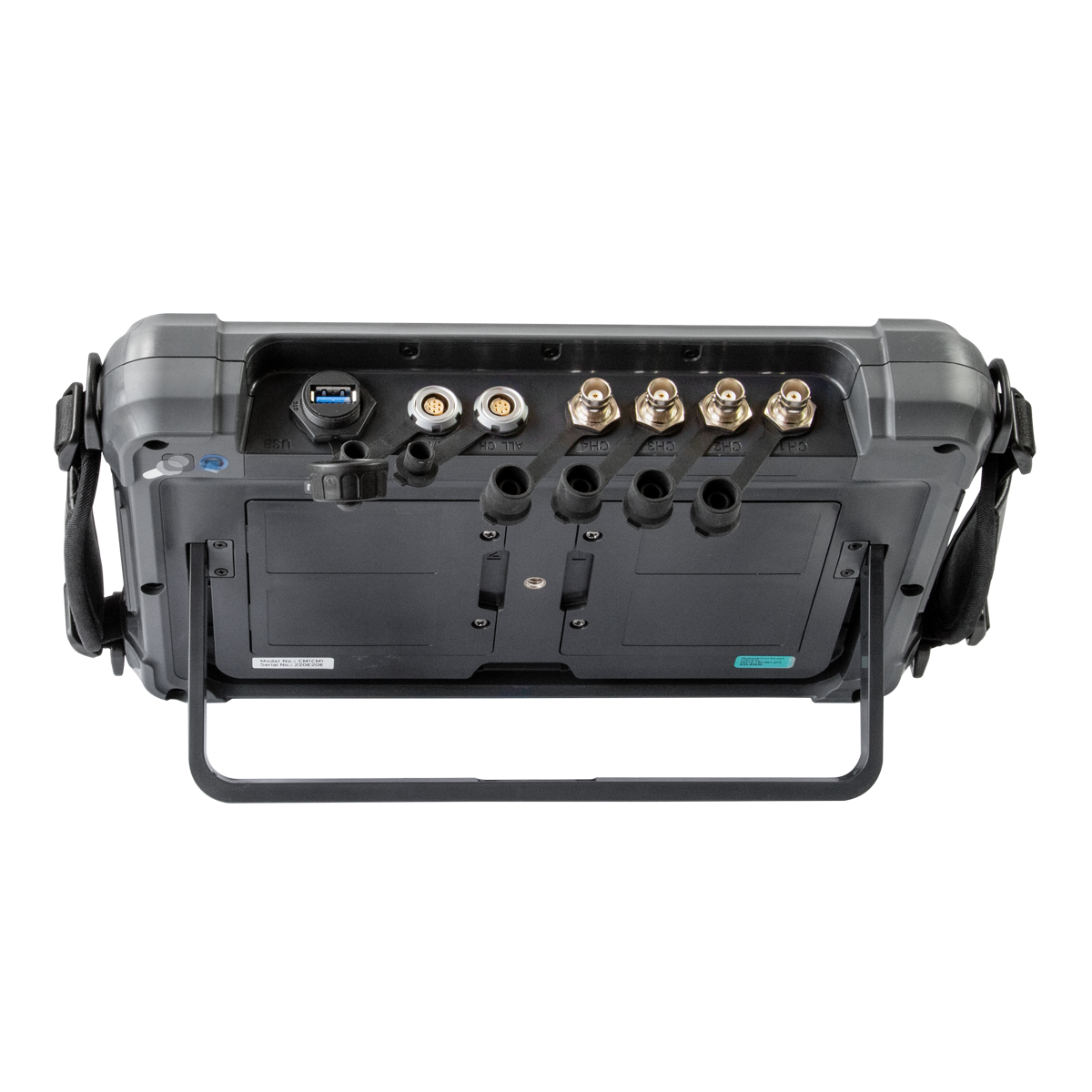

Connector
Channel 1 ~ channel 4: BNC,

Tri-axial: Fischer Core Series 103*, 6 pins
Tacho input:  Fischer Core Series 103*, 7 pins
USB: USB 3.1, Type-A connector

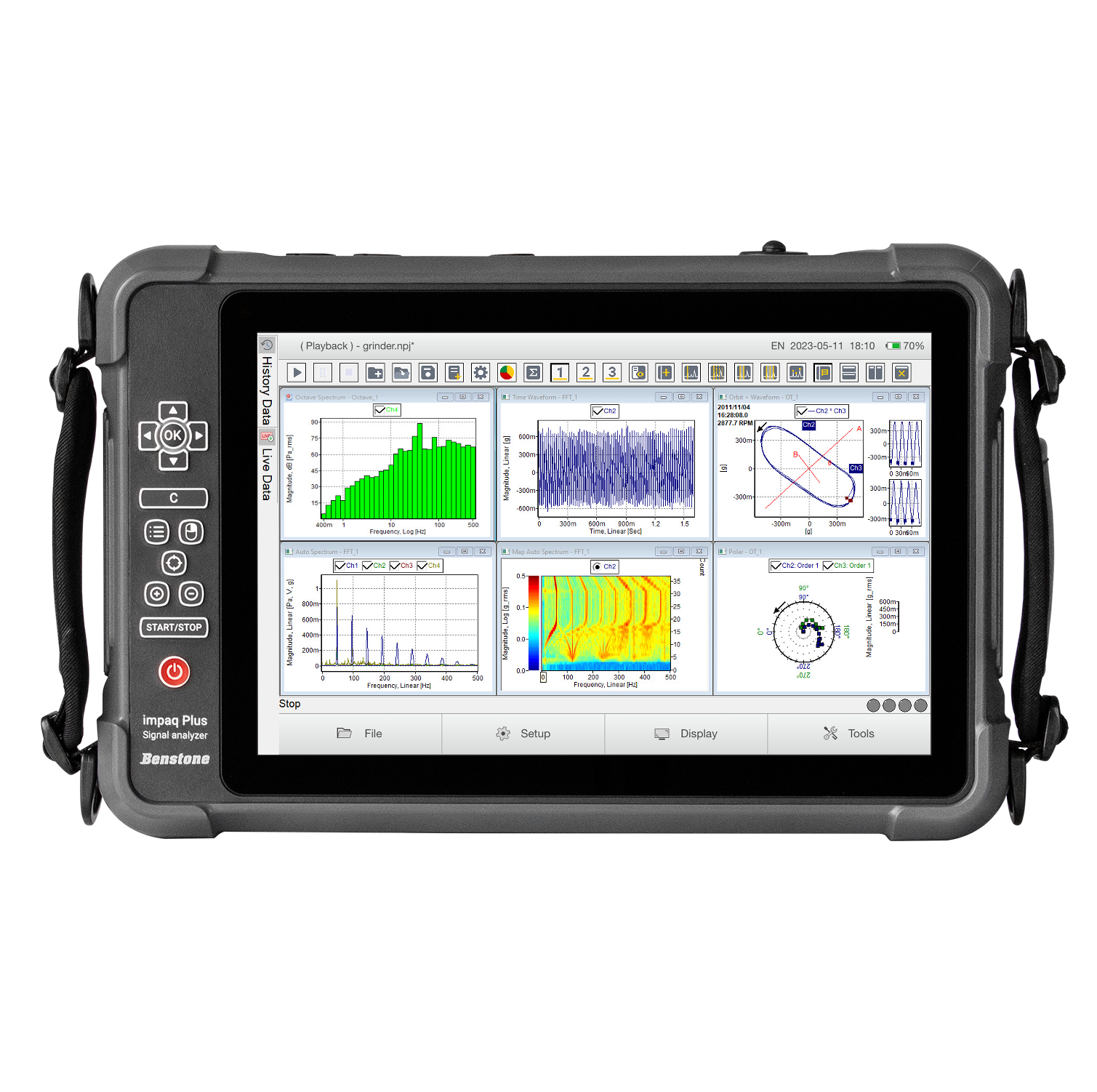

Multiple Analysis
impaq Plus supports multiple analysis which allows you to run different analysis modules, such as FFT analysis, Octave spectrum, order tracking analysis and raw data recording, at the same time.

Optional software modules

  • FFT spectrum analysis
  • Octave spectrum analysis
  • Order Tracking analysis
  • Data recorder and playback
  • Rotor balancing
  • Advanced field balancing module
    The Impaq Plus’s rotor balancing package can balance your rotating machines in the field with industry leading balancing techniques
    Rotor types for balancing
       Single plane, dual plane, 3 plane, 4 plane, overhung dual plane, 3 weights  balancing

    Balancing speed
       60 rpm to 300,000 rpm

    Balancing grade
       Built-in ISO 1940 standard or user defined

    Multi-point balancing
       Single plane: 1, 2, 3 or 4 points

       Dual plane: 2 or 4 points
       Display projected vibration vectors
    Tools
       1X coast down order trace, decoupled balancing (static and couple),
       unequal radii, component calculation, drill depth, vibration history,
       balancing history
