| 품명 | : OR34 Compact Analyzer |
| 제조사 | : OROS |
| 모델 | : OR34 |
| 규격 | : 4 ch, 40kHz, ±10 V range, 24 bits |
|
|
|
| - 제품 상세설명 : |
Overview

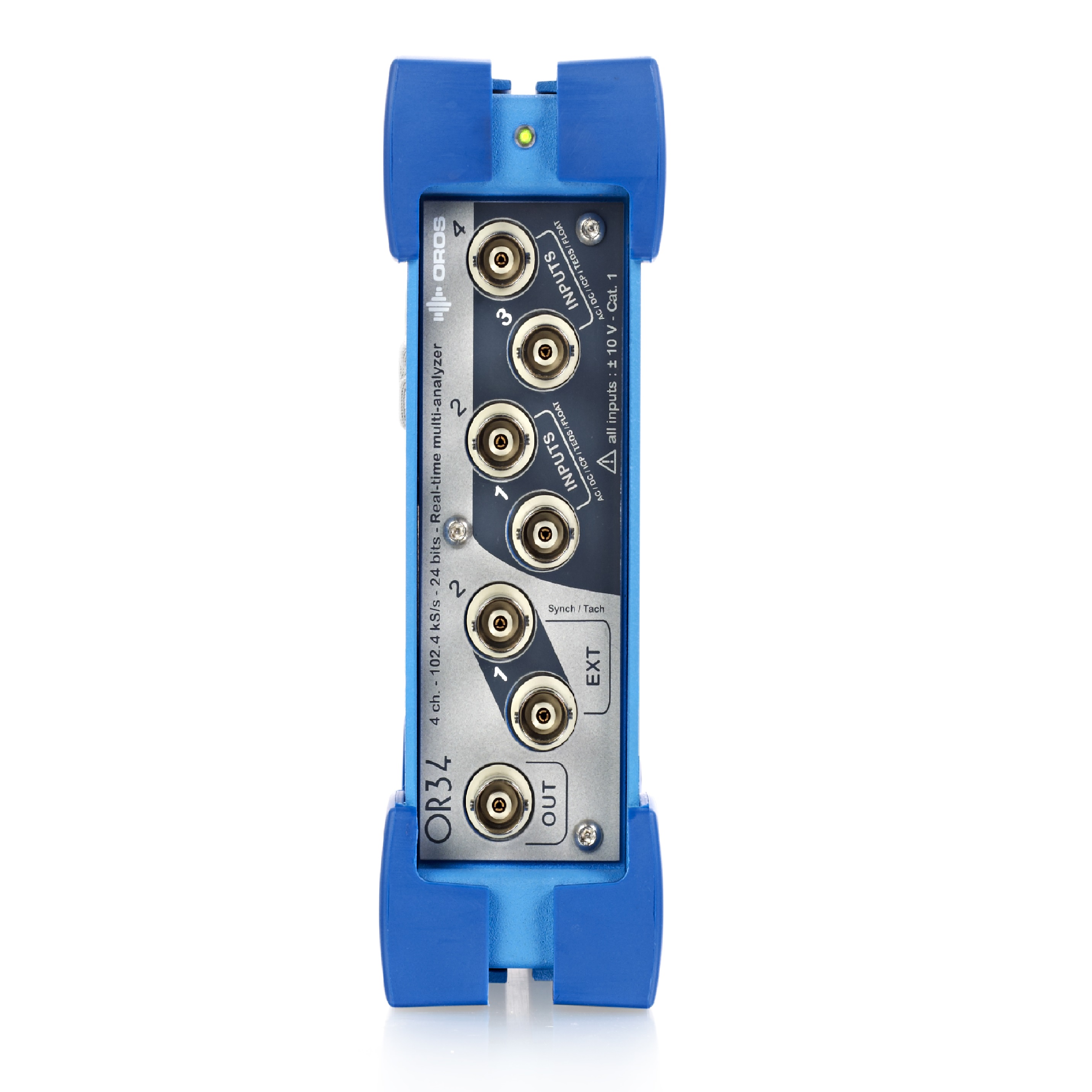

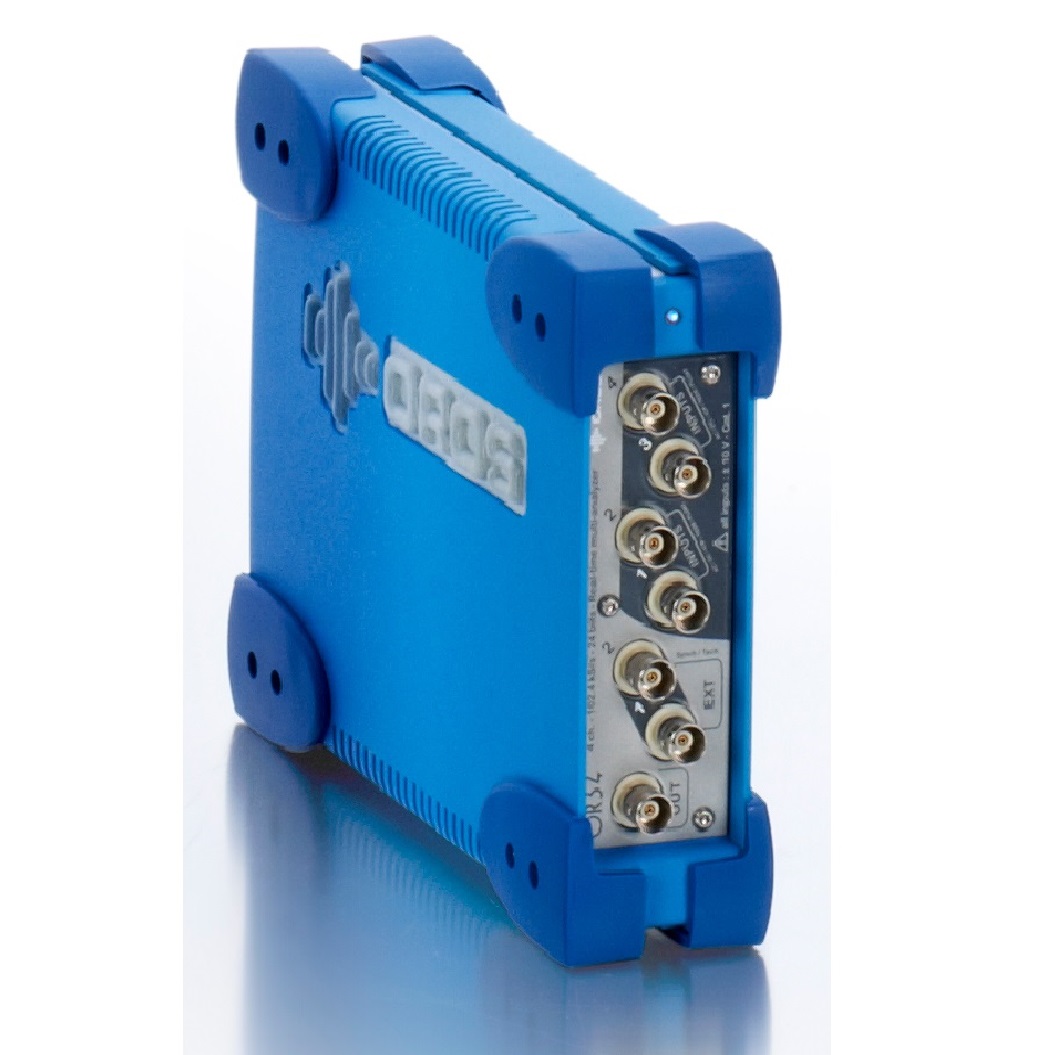

OR34 is the smallest instrument in this series. Its size sacrifices nothing to efficiency.
This 4 channel analyzer brings all the best from the 3-Series technology in a professional, rugged and powerful unit.
Main Features
- Ultra-light: 1.4 kg (3 lbs)
- Hand size (A5 foot print)
- Uninterruptible power supply
- 2 triggers/tachometers inputs
- 1 generator output
- 1 computation DSP
- Real-time bandwidth 40 kHz
- ± 10 V Inputs, 24 bits, ICP®
- 100 Mbits/s Ethernet
Compact Real-time Analyzer
OR34 is the compact real-time multi-analyzer that integrates the best of noise & vibration analysis technology in an ultra mobile instrument. OR34 is the synthesis of the ultimate 3-Series technology and OROS' wealth of experience in measurement. Designed to offer the essentials in a professional instrument, OR34 will follow you everywhere.

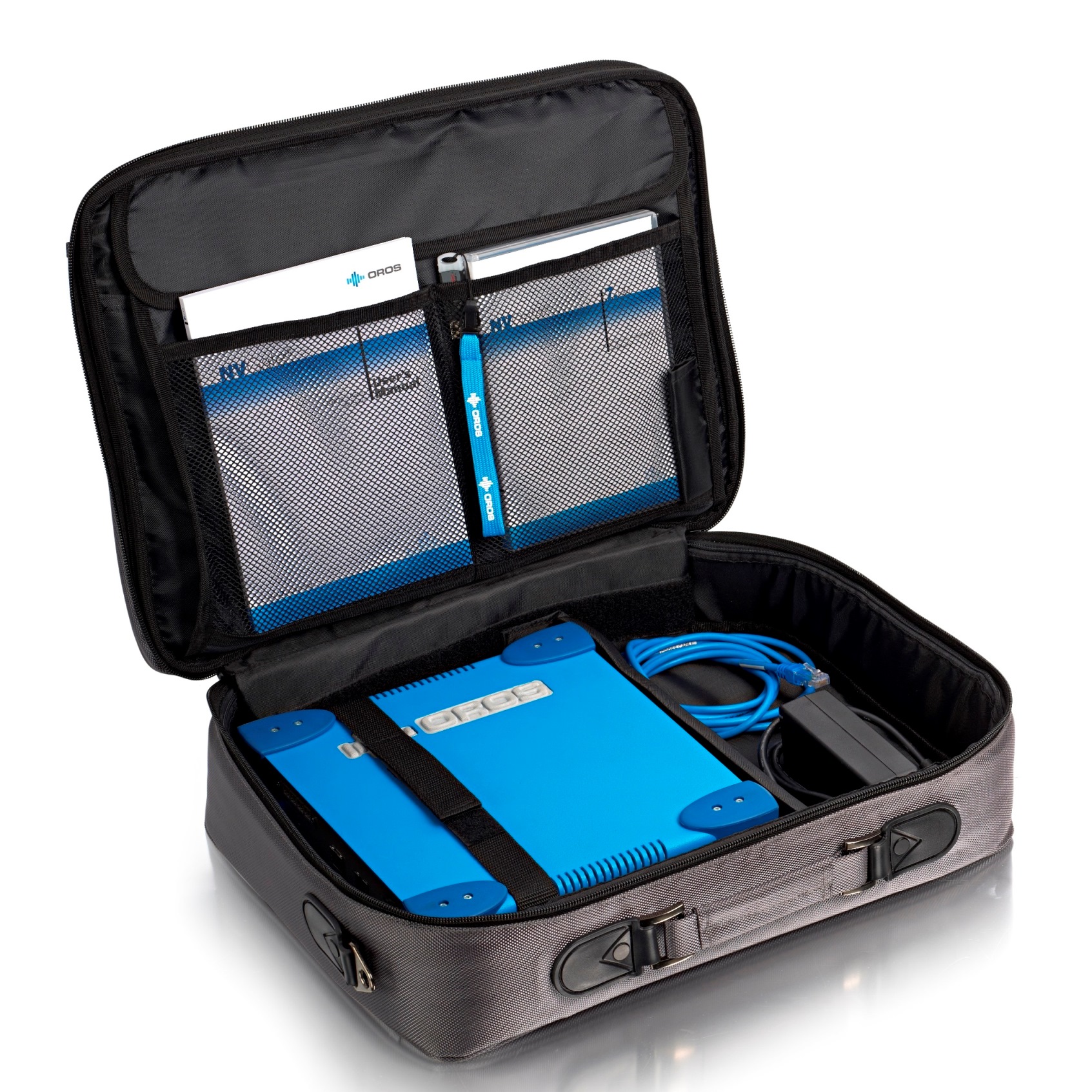

Weighting less than 1.4 kg (3 lbs), OR34 is the lightest analyzer of its class. OR34 is ultra-portable and can be carried easily along with your laptop for intensive use. Its exceptional robustness makes it the instrument you can trust.
Choose OR34 and go straight to the essentials.
|
 |
 |
Your everydays compagnon
OR34 is designed for professionals working in the field as well as in labs. Its rigorous design, based on high quality materials and electronics (aluminum case and independent power supply) ensures stable and accurate measurements in all situations. This makes OR34 the most reliable solution for mobile dynamic signal measurement and analysis. |
OROS Instruments
Made for the Field, Flexible, Accurate
|
