Overview
ORBIGate is the dedicated software module for industrial rotating machinery vibration during diagnostics as well as acceptance works. Easy to use, it provides all the tools to bring the highest level of set-up simplicity and efficiency to the user.

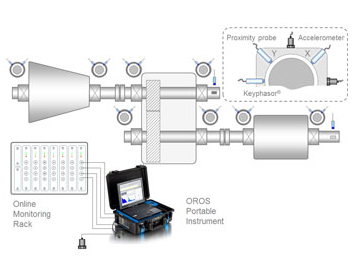

Featuring simultaneous portable acquisition on up to 32 dynamic channels, an entire machine train can be tested during transients or steady states. The system acquires and analyzes orbit, Bode, shaft and casing vibration. Typical graphics are orbits, shaft centerline, spectra, Bode and polar diagrams, trends, waterfall, overall peak to peak, 1X (amplitude and phase). In a typical situation the OROS instrument is connected to the outputs of the monitoring system as shown in above figure.
