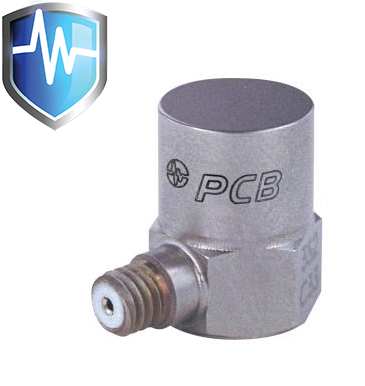

품명: Test Accelerometer
제조사: PCB
모델: 352C
규격: 100mV/g 0.5Hz-15000Hz
- 제품 상세설명 :



  ENGLISH SI
Performance
    Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
    Measurement Range ±50 g pk ±490 m/s² pk
    Frequency Range (±5 %) 0.5 to 10000 Hz 0.5 to 10000 Hz
    Frequency Range (±10 %) 0.3 to 15000 Hz 0.3 to 15000 Hz
    Resonant Frequency ≥50 kHz ≥50 kHz
    Broadband Resolution (1 to 10000 Hz) 0.00015 g rms 0.0015 m/s² rms [3]
    Non-Linearity ≤1 % ≤1 % [1]
    Transverse Sensitivity ≤5 % ≤5 % [2]
Environmental
    Overload Limit ±5000 g pk ±49000 m/s² pk
    Temperature Range -65 to +200 °F -54 to +93 °C [4]
    Temperature Response See Graph %/°F See Graph %/°F [4][3]
    Base Strain Sensitivity 0.003 g/µε 0.029 (m/s²)/µε [3]
Electrical
    Excitation Voltage 18 to 30 VDC 18 to 30 VDC
    Constant Current Excitation 2 to 20 mA 2 to 20 mA
    Output Impedance ≤200 Ohm ≤200 Ohm
    Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
    Discharge Time Constant 1.0 to 2.5 sec 1.0 to 2.5 sec
    Spectral Noise (1 Hz) 39 µg/√Hz 380 (µm/sec2)/√Hz [3]
    Settling Time (within 10% of bias) <10 sec <10 sec
    Spectral Noise (10 Hz) 11 µg/√Hz 110 (µm/sec2)/√Hz [3]
    Spectral Noise (100 Hz) 3.4 µg/√Hz 33 (µm/sec2)/√Hz [3]
    Spectral Noise (1 kHz) 1.4 µg/√Hz 14 (µm/sec2)/√Hz [3]
Physical
    Size - Height 0.62 in 15.7 mm
    Weight 0.20 oz 5.8 gm [3]
    Sensing Element Ceramic Ceramic
    Size - Hex 0.44 in 11.2 mm
    Sensing Geometry Shear Shear
    Housing Material Titanium Titanium
    Sealing Hermetic Hermetic
    Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
    Electrical Connection Position Side Side
    Mounting Thread 10-32 Female 10-32 Female
    Mounting Torque 10 to 20 in-lb 113 to 226 N-cm
