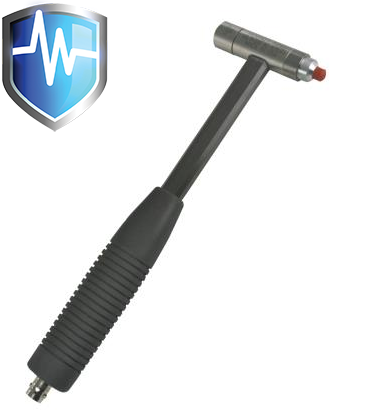

| 품명 | : impact hammer |
| 제조사 | : PCB |
| 모델 | : 086c |
| 규격 | : 2.25mV/N |
|
|
|
| - 제품 상세설명 : |
제조사 홈페이지
| Sensitivity (±15 %) |
10 mV/lbf |
2.25 mV/N |
|
| Measurement Range |
±500 lbf pk |
±2224 N pk |
|
| Resonant Frequency |
≥22 kHz |
≥22 kHz |
|
| Non-Linearity |
≤1 % |
≤1 % |
|
| Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
| Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
| Output Impedance |
<100 Ohm |
<100 Ohm |
[1] |
| Output Bias Voltage |
8 to 14 VDC |
8 to 14 VDC |
|
| Discharge Time Constant |
≥2000 sec |
≥2000 sec |
[1] |
| Sensing Element |
Quartz |
Quartz |
|
| Sealing |
Epoxy |
Epoxy |
|
| Hammer Mass |
0.34 lb |
0.16 kg |
|
| Head Diameter |
0.62 in |
1.57 cm |
|
| Tip Diameter |
0.25 in |
0.63 cm |
|
| Hammer Length |
8.5 in |
21.6 cm |
|
| Electrical Connection Position |
Bottom of Handle |
Bottom of Handle |
|
| Extender Mass Weight |
2.6 oz |
75 gm |
|
| Electrical Connector |
BNC Jack |
BNC Jack |
|
|
