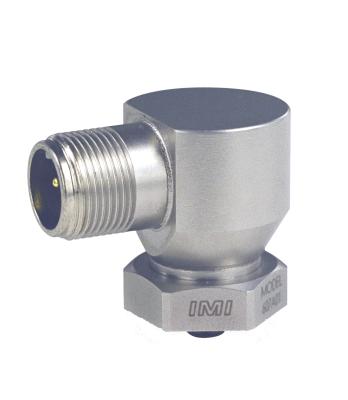

| 품명 | : 607A01 Industrial ICP Accelerometer |
| 제조사 | : PCB |
| 모델 | : 607A01 |
| 규격 | : 100 mV/g, 0.5 to 10k Hz, side exit, 2-pin MIL conn |
|
|
|
| - 제품 상세설명 : |
Platinum Stock Products;Low profile industrial ICP® accel, 100 mV/g, 0.5 to 10k Hz, side exit, 2-pin MIL conn. & swiveler base, single point ISO 17025 accredited calibration US patent number 6.435.902 - Sensitivity: (±15%)100 mV/g (10.2 mV/(m/s²))
- Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)
- Sensing Element: Ceramic
- Measurement Range: ±50 g (±490 m/s²)
- Weight: 3.7 oz (105 gm)
|
